Features
Universal power supply:
20 to 250 Vac and 20 to 250 Vdc Process input: (TPIv400/450) (pCv3012/3212)
±100mV, ±1V, ±10V, ±270V, ±20mA
Universal input: (TPIv401/451)(pCv3011/3211)
±100mV, ±1V, ±10V, ±270V, ±20mA,
Pt100, Ni 100 (2, 3 or 4 wire), APt100 thermocouple, résistance and potentiometer.
Average response time 150ms (15ms version F)
Supply for 2-wire sensor
Isolated analog outputs (A)
0-4-20mA current (active/passive) or 0-10V voltage.
Relay outputs (R) : 2 change-over relays (8A/250 VAC on résistive load).
Digital communications (N) isolated RS485 Modbus/Jbus Sensor break détection and self-diagnosis.
Isolation input / outputs / supply.
Mode simulation allowing to validate the configuration or the installation.

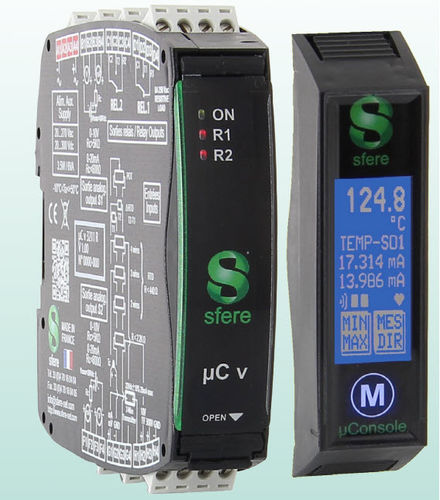

Programming either with micro-console or by the PC software SlimSET via a standard USB/pUSB cable.

Parameter Name	Parameter Value
Signal type	digital, analog
Bus	USB, RS485, Modbus
Applications	current voltage
Mounting	DIN rail
Other characteristics	universal
